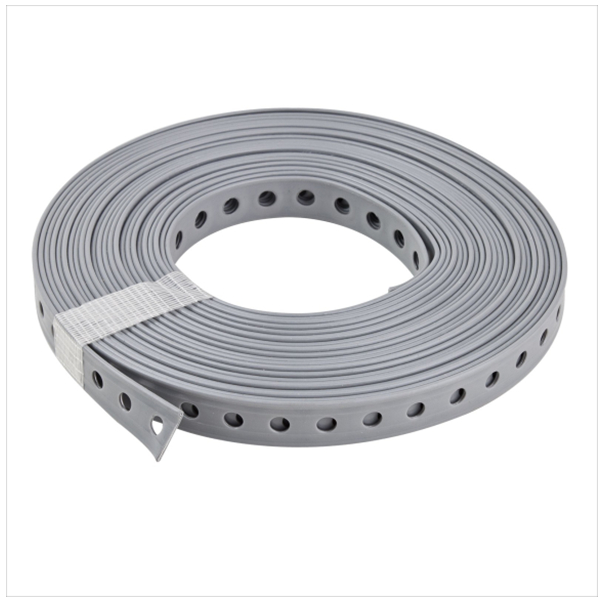

Galvanised Steel Fixing Band is suitable for the easy fixing of pipelines to the substrate. The perforated tape can be flexibly adjusted in line with any pipe diameter. It can be cut to size using sheet metal shears. Bewin offers the perforated tape in a zinc-plated or plastic-coated version with different tape widths from 12 to 27 mm. The galvanized zinc version is suitable for installation in buildings.
| Dimension: | ||
| Band Width | Length | Thickness |
| 12mm | 7m | 0.8-2.0mm |
| 17mm | 7m | |
| 10m | ||
| 25m | ||
| 30m | ||
| 19mm | 10m | |
| 25m | ||
| 30m |
Advantage:

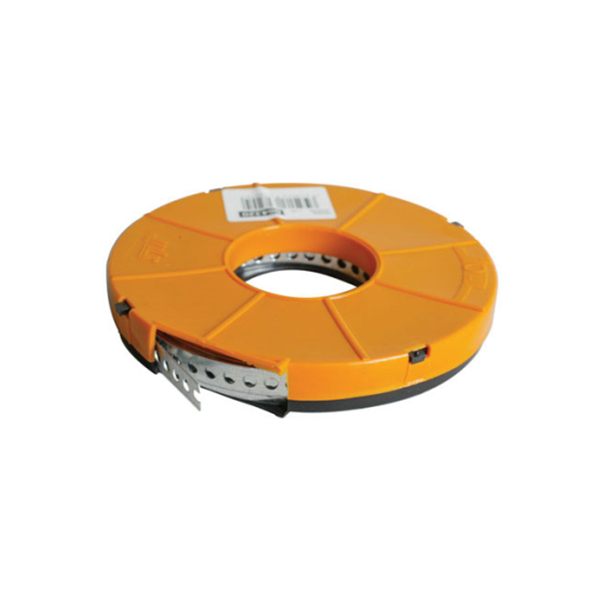

Strapping of steel in coil of 10 meters packing in a plastic housing practice for easy installation
Maximun load resistance 60 Kg
Galvanized coating 10-15 microns thick
Tooling design and assemble in house.
Excellent in tolerance control
Different kinds of material available
Package:
Application:
